Snapshots Home

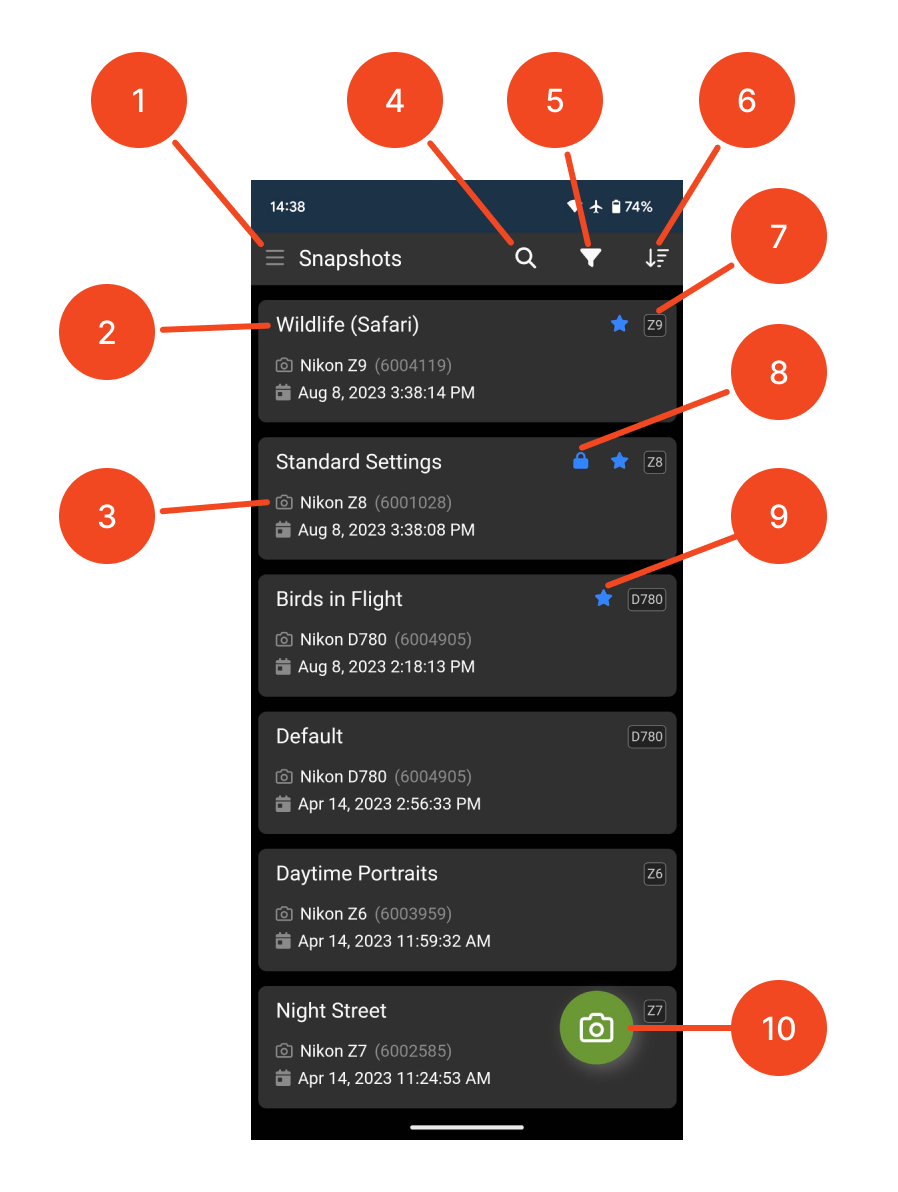

The first screen you see when you start the Snapshots app is the Home page.

1. Menu – click this to show the app menu
2. Snapshot Title – the title given to the Snapshot so you can easily identify how the collection of settings will affect your camera
3. Snapshot Summary – the camera model, serial number and modification date of the Snapshot.
4. Search – use this to enter text to filter the Snapshot list
5. Filter – show the filter options to show/hide Snapshots by attributes such as Favourite
6. Sort Options – choose how the Snapshots are sorted
7. Camera –shows the type of camera that this Snapshot is compatible with
8. Locked indicator – Snapshots can be locked to prevent changes or deletion
9. Favourite indicator – Snapshots can be marked as favourites for easy filtering
10. Capture button – tap this button to capture a new Snapshot from the connected camera. Learn more…

Note: The Capture button will only be visible when a compatible camera is connected.

Capturing a Snapshot

Hit the button (10) to capture a new Snapshot from your camera. Learn more…

Filter

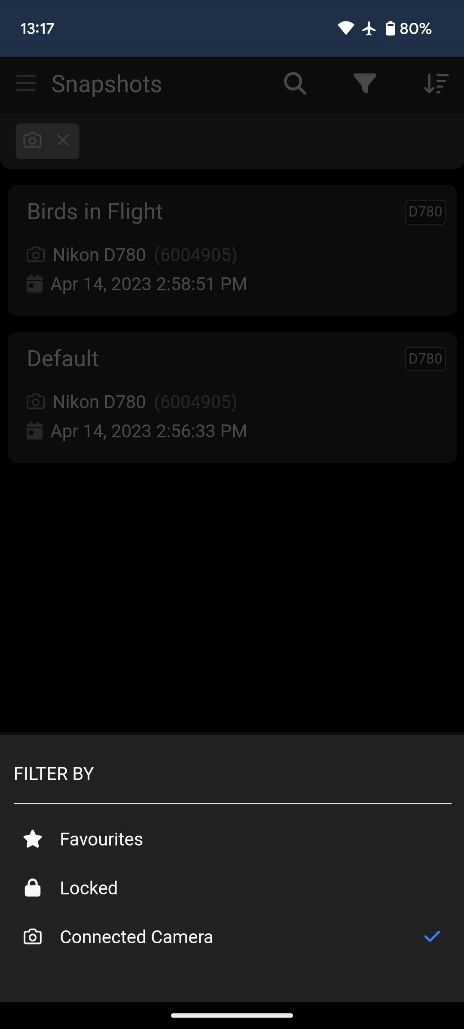

Tapping the filter button (5) will open the filter panel at the bottom of the screen.

Tap the options to filter – those indicated with a blue check mark are active. In the example below, only Snapshots that are compatible with the connected camera are shown:

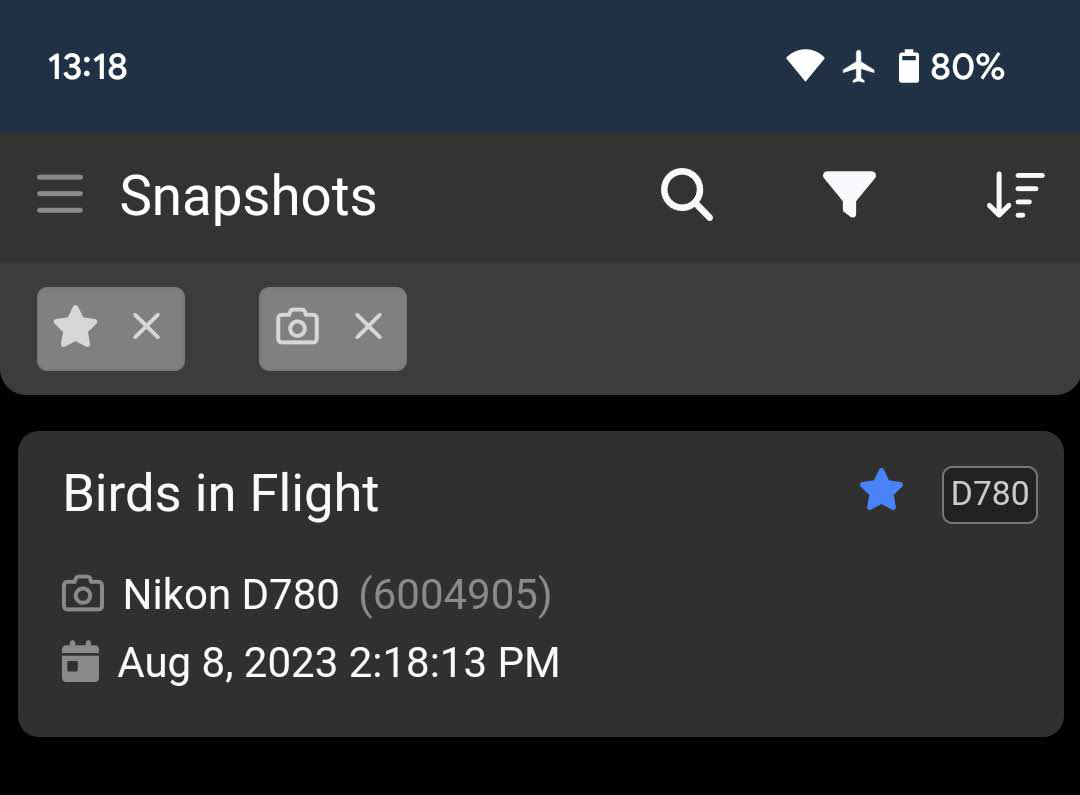

This is indicated at the top of the Snapshot list with the filter info pane:

Hit the X by any filter element to remove it.

Text Filter

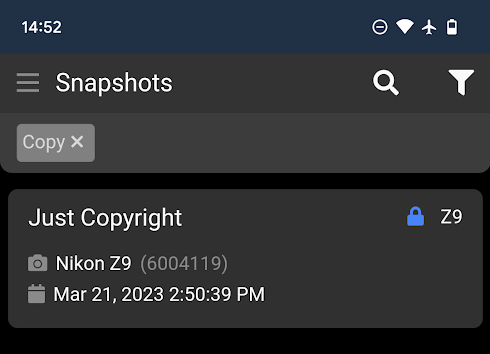

The text filter works in the same way – hit the search icon (4), type some text tap enter to filter on the text. This example shows filtering on the word “Copy”:

Sort Order

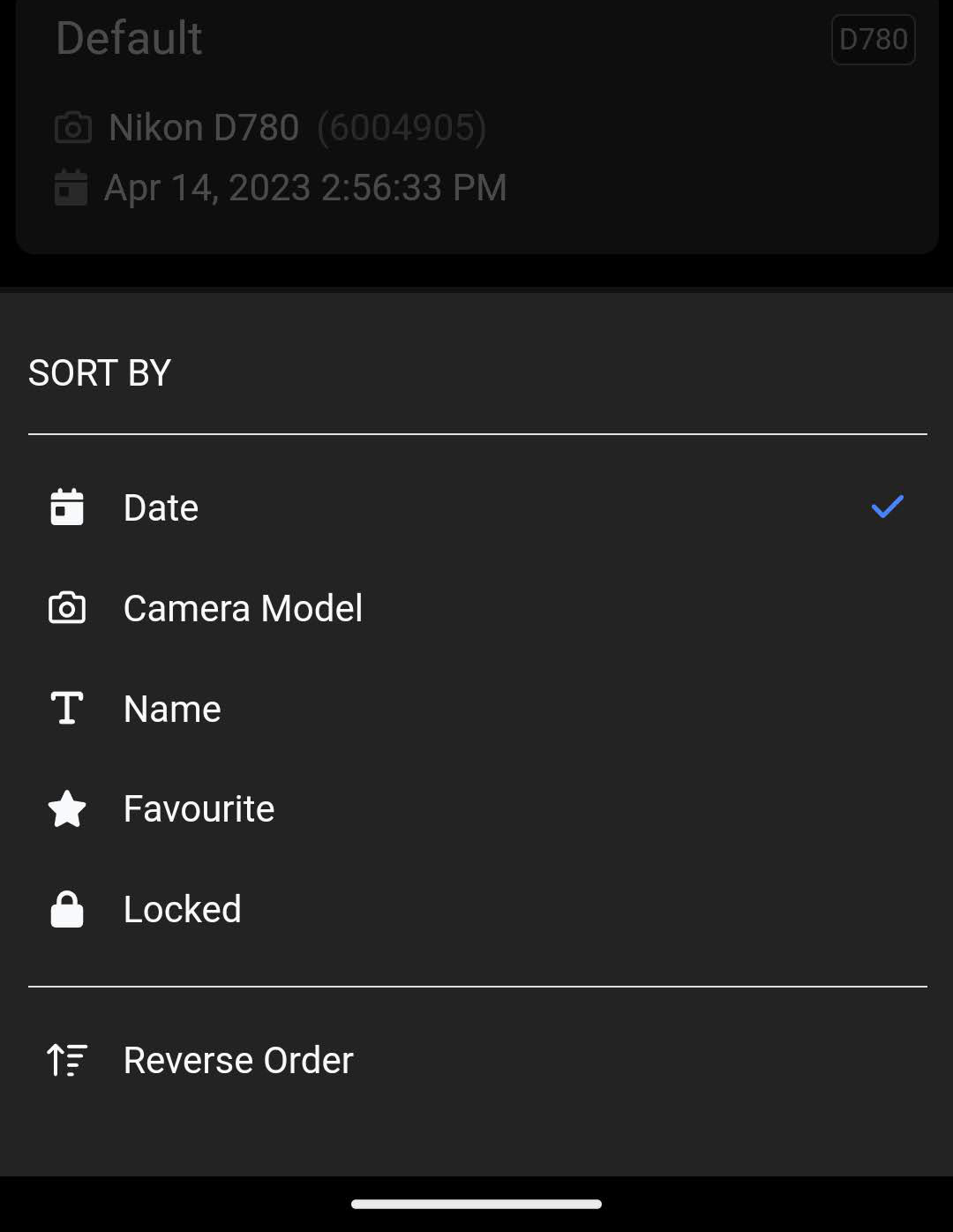

Tap the sort order button (6) to open the sort order panel at the bottom of the screen.

Here, you can choose how to sort the Snapshots, and whether to reverse the order.
